(25), (25)A, (25)A*, (25)A**
Electrical Impact Fuze

DATA:
Bombs Used In: H.E. Bombs.
Color: Dark Grey.
Material: Aluminum.
Possible Actions for (25), others similar:

SWITCH SETTING I 1. Instantaneous. 2. 0.08-sec. delay. 3. 14-sec. delay.

SWITCH SETTING II 1. Instantaneous. 2. 0.08-sec. delay cut off. 3. 14-sec. delay.

Arming Times for (25):

LEVEL FLIGHT (150v) 1. Instantaneous. 10.0-15.5 sec. 2. 0.08-sec. delay. 10.0-15.3 sec. 3. 14-sec. delay. 0.8-1.3 sec.

DIVING FLIGHT (240v) 1. Instantaneous. 5.5-8.5 sec. 2. 0.08-sec. delay. 6.8-10.2 sec. 3. 14-sec. delay. 0.4-0.8 sec.

Principal Markings: El. A. Z. C50 (15)
Secondary Markings:

Rh. S. 1939    Rh. S. 1940    Rh. S. 195-1940    AD 1940    FC 1940    AD 1940    1940    AB 1940    BC 1940

FC 1940    AC 1940    edr 1941    gyx 1941    dtf 1941    wtf 1941    BC 1941    edr 1941

---

resistance is omitted. The (25)A* differs from the (25)A only in wiring connections.
DESCRIPTION:

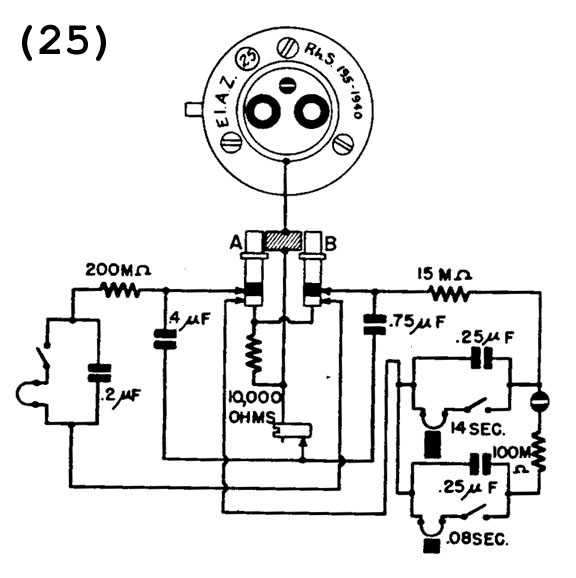

The fuze has three firing circuits and is of type 2 construction. A screw in the head operates a switch which cuts out the short delay circuit leaving only the long delay under plunger B.
SAFETY SWITCHING:
Each plunger cuts off the opposite arming circuit when depressed.
REMARKS: The (25)A differs from the (25) in that the 200M resistor is reduced to 60M. Arming time is about one third. The 10,000-ohm

---

All information for this entry were acquired from Army Technical manual TM 9-1985-2/Air Force Technical Order TO 39B-1A-9 GERMAN EXPLOSIVE ORDNANCE (Bombs, Fuzes, Rockets, Land Mines, Grenades & Igniters)
